APPLICATIONS Horticulture & Agriculture Domestic and Community Water Supply Sprinkler and Drip Irrigation Rural Water Supply Ground Water Supply to Water Works SPECIFICATIONS Head : Up to 427 Metres Capacity : Up to 650 LPM Power Rating : 2 .2 to 18.3 kW / 3 to 25 HP Voltage range : 200 to 440 volts (three phase) Type of cooling : Water-filled Insulation : B class Protection : IP 68 MATERIAL OF CONSTRUCTION HHN Impeller: Noryl Diffuser: Noryl Diffuser Casing: Cast Iron Pump Shaft: Stainless Steel Motor Body: Stainless Steel Motor Shaft: Stainless Steel Finished Rotor: Copper NRV: Cast Iron Suction: Cast Iron Pump/Motor Bushes: LTB Thrust Bearing: Carbon + SS DOL: Cast Iron HHF Impeller: Stainless Steel Diffuser: Stainless Steel Diffuser Casing: Stainless Steel Pump Shaft: Stainless Steel Motor Body: Stainless Steel Motor Shaft: Stainless Steel Finished Rotor: Copper NRV: Cast Iron Suction: Cast Iron Pump/Motor Bushes: LTB Thrust Bearing: Carbon + SS DOL: Cast Iron FEATURES Wide Voltage Motor Designs with 100% Copper Rotor Sand Fighter Designs Dynamically Balanced Rotating Parts Longer and Trouble Free Life High Head Applications CED – Cathode Electro Deposition Coating Designed to Prevent Overloading Shielded Ball Bearing

APPLICATIONS Domestic and Community Water Supply Gardening and Small Farm Irrigation Water Fountains Construction Site Water Supply to Overhead Tanks SPECIFICATIONS Head Range: Up to 38 metres Discharge Range: Up to 11 LPH Power Ratings: 0.37 to 1.5 Kw (0.5 to 2 HP) Voltage Range: 300 to 440 volts (three phase) Insulation: B class Protection: IP 68 MATERIAL OF CONSTRUCTION Impeller: Cast Iron/Noryl Delivery Casing: Cast Iron Motor Body: Cast Iron Shaft: Stainless Steel FEATURES Wide Voltage Design Lightweight and Compact Design Dynamically Balanced Rotating Parts Replaceable Wearing Parts Easy Maintainable Design CED – Cathode Electro Deposition Coating High Efficiency and Energy Saving Design Advanced Water-cooled Motor Design

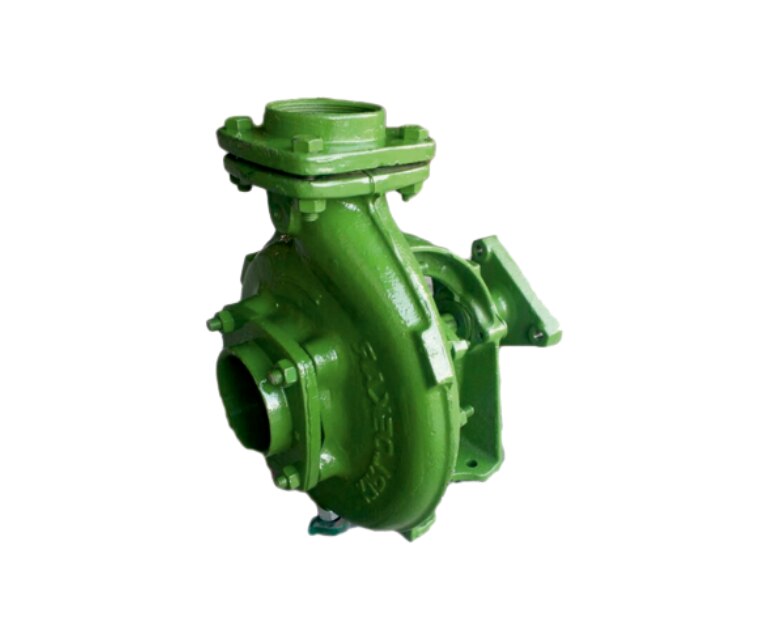

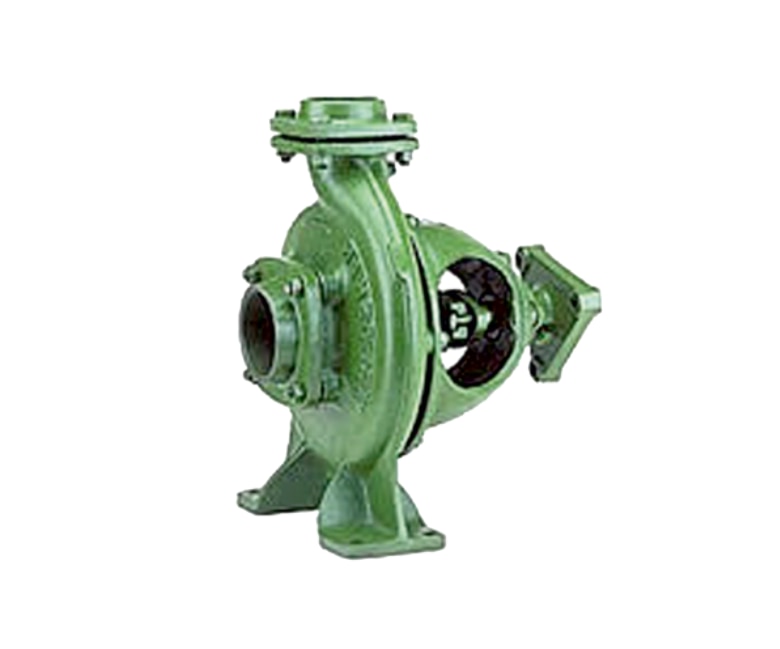

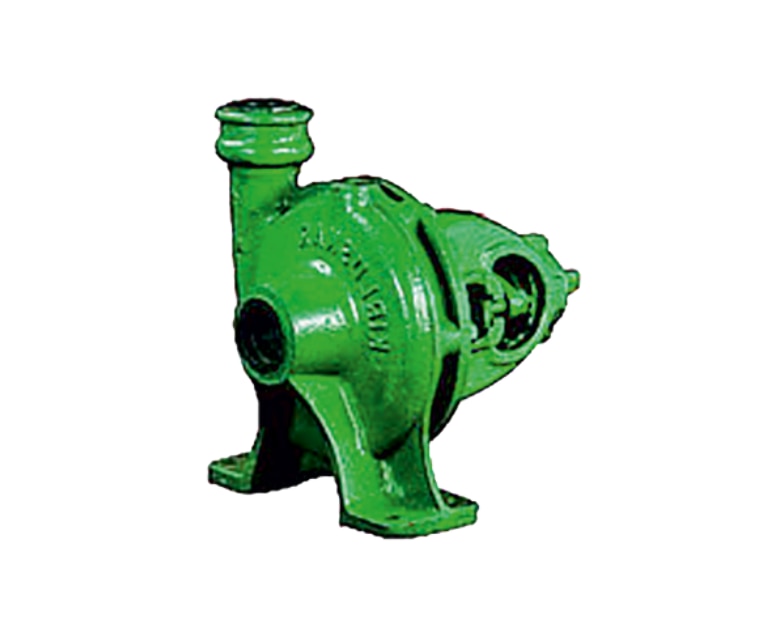

APPLICATIONS Horticulture & Agriculture Rural Water Supply Mounting on Water Tanker SPECIFICATIONS Engine Coupled Head Range: Up to 44 metres Discharge Range: Up to 96.5 LPS Power Ratings: 3.7 to 18.7 kW (5 to 25 HP) Motor Coupled Head Range: Up to 32 metres Discharge Range: Up to 87 lps Power Ratings: 2.2 to 11 kW (3 to 15 HP) MATERIAL OF CONSTRUCTION Impeller: Cast Iron Delivery Casing: Cast Iron Pump Shaft: Carbon Steel FEATURES Flatter Efficiency Curve Automatic Air Release Designed to Prevent Overloading Replaceable Wearing Parts Dynamically Balanced Rotating Parts Easy Maintainable Designs Designed to Run Directly/through Pulley with Engine/Motor
