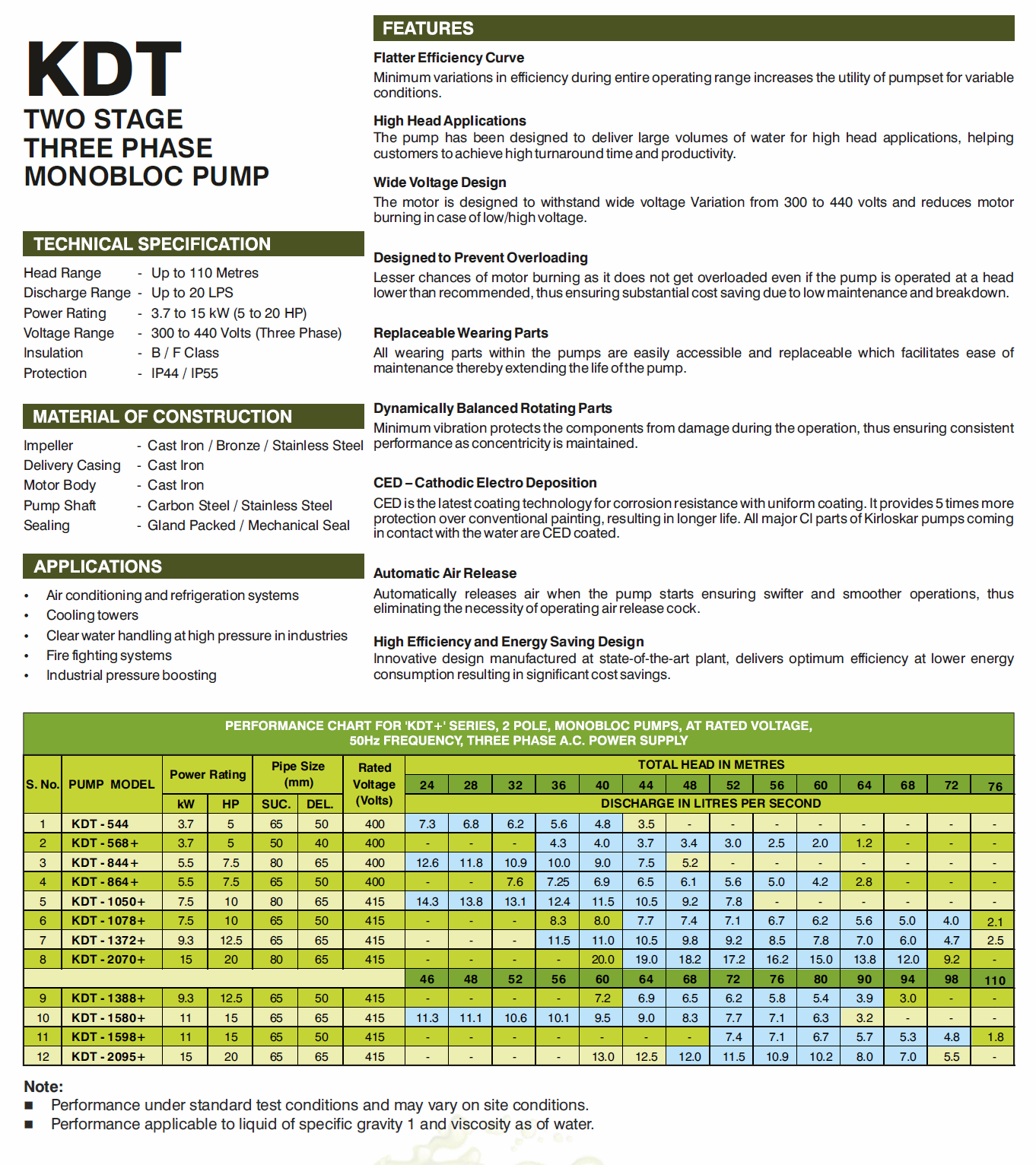

Industrial Monobloc Pumps by Kirloskar
Description
APPLICATIONS
Air Conditioning and Refrigeration System
Cooling Towers
Clear Water Handling at High Pressure in Industries.
Firefighting System
Industrial Pressure Boosting
SPECIFICATIONS
Head Range: Up to 98 metres
Discharge Range: Up to 20 LPS
Power Ratings: 3.7 to 15 kW (5 to 20 HP)
Voltage Range: 300 to 440 volts (three phase)
Insulation: B / F class
Protection: IP 44 / IP 55
MATERIAL OF CONSTRUCTION
Impeller: Cast Iron/ Bronze/Stainless Steel
Delivery Casing: Cast Iron
Motor Body: Cast Iron
Pump Shaft: Carbon Steel/Stainless Steel
Sealing: Gland Packed/Mechanical Seal
FEATURES
Flatter Efficiency Curve
High Head Applications
Wide Voltage Design
Designed to Prevent Overloading
Replaceable Wearing Parts
Dynamically Balanced Rotating Parts
CED – Cathode Electro Deposition Coating
Automatic Air Release
