Openwell Submersible Pumps BY KIRLOSKAR

APPLICATIONS

Horticulture & Agriculture

Sprinkler and Drip Irrigation

Water Supplies for High Rise Buildings

Rural Water Supply

Domestic and Community Water Supply

SPECIFICATIONS

Head: Up to 147 metres

Capacity: Up to 840 LPM / 50 m3/hr

Power Ratings: 2.2 to 15 kW / 3 to 20 HP

Voltage Range: 200 to 440 volts (three phase)

Insulation: B class

Protection: IP 68

MATERIAL OF CONSTRUCTION

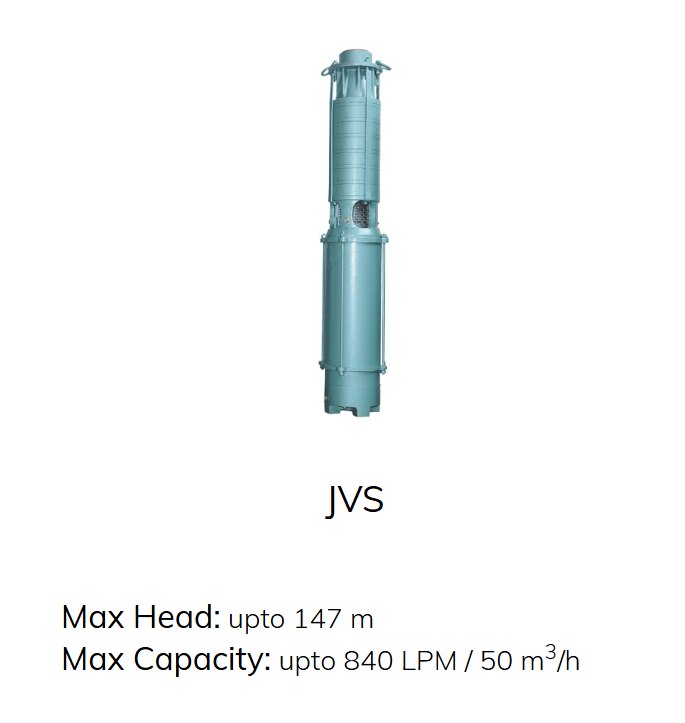

JVS

Impeller: Stainless Steel

Outlet (NRV Body): Cast Iron

Motor Body: Mild Steel

Pump Shaft: Stainless Steel

JVSN

Impeller: Cast Iron

Outlet (NRV Body): Cast Iron

Motor Body: Cast Iron

Pump Shaft: Stainless Steel

FEATURES

Wide Voltage Design

Design to Prevent Overloading

High Efficiency and Energy Saving Design

Dynamically Balanced Rotating Parts

Advanced Water-cooled Motor Design

Wide Voltage Motor Design with 100% Copper Rotor

Easy Maintainable Design

High-head Applications
