Self-priming Pumps by Kirloskar

APPLICATIONS

Handling Chemicals, Effluents, Sewage and Ash-Water

De-Watering Foundation, Trenches and Pits

Flood Water Handling

Pumping Water from Docks, Ports, Vessels

Dewatering from Basements, Multi-storeys, Shopping Malls, Godowns, etc.

Cooling Water for Marine Engines and Shovels

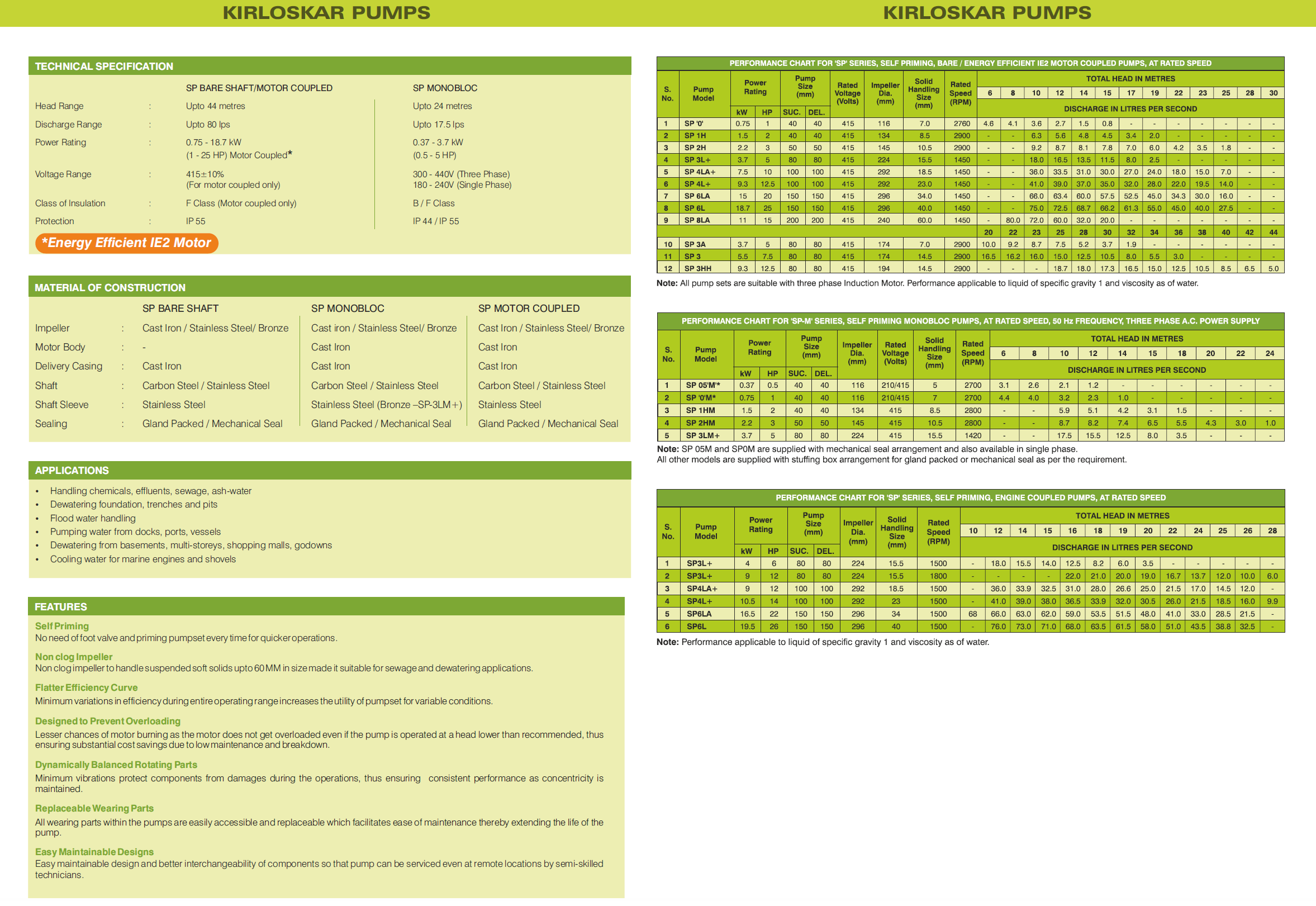

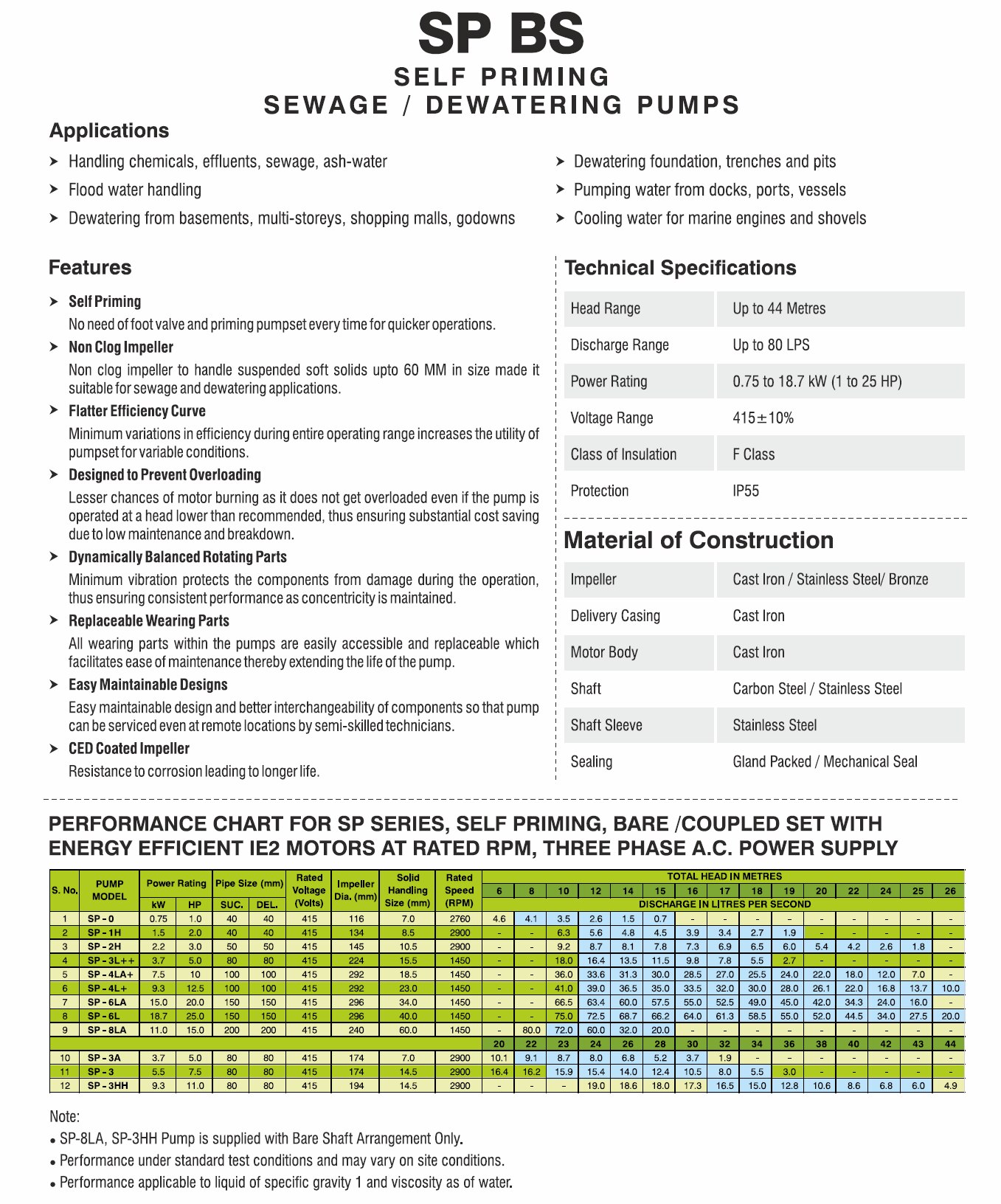

SPECIFICATIONS

Head range: Up to 44 metres

Discharge Range: Up to 80 LPS

Power Rating: 0.75 - 18.7 kW & (1 - 25 HP) motor coupled

Voltage Range: 415±10%

Class of insulation: F class (motor coupled only)

Protection: IP 55

MATERIAL OF CONSTRUCTION

Impeller: Cast Iron/Stainless Steel/Bronze

Motor Body: N/A

Delivery Casing: Cast Iron

Shaft: Carbon Steel/Stainless Steel

Shaft Sleeve: Stainless Steel

Sealing: Gland Packed/Mechanical Seal

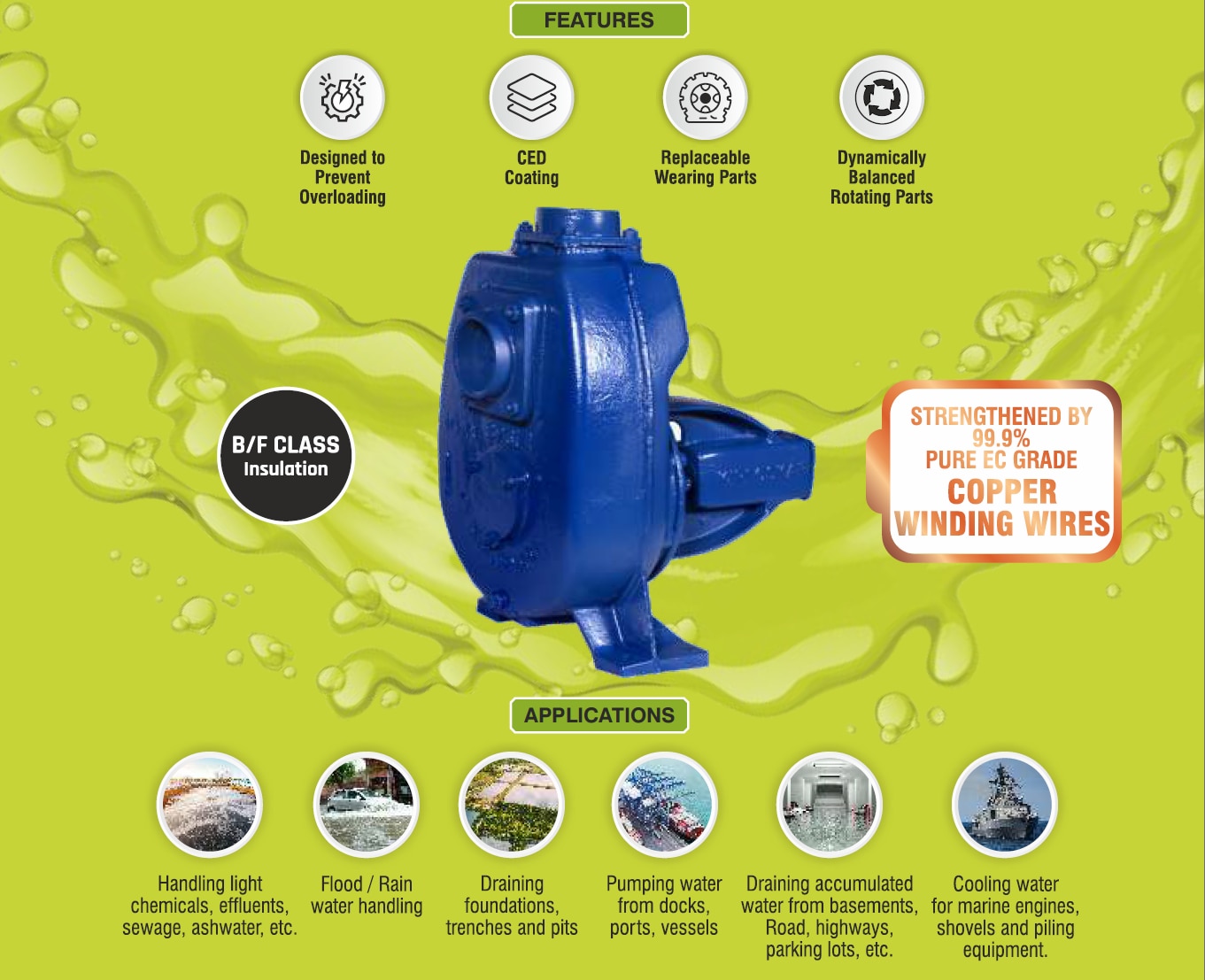

FEATURES

Self-priming

Non-clog impeller

Flatter Efficiency Curve

Designed to Prevent Overloading

Dynamically Balanced Rotating Parts

Replaceable Wearing Parts

CED – Cathode Electro Deposition Coating

Easy Maintainable Design
