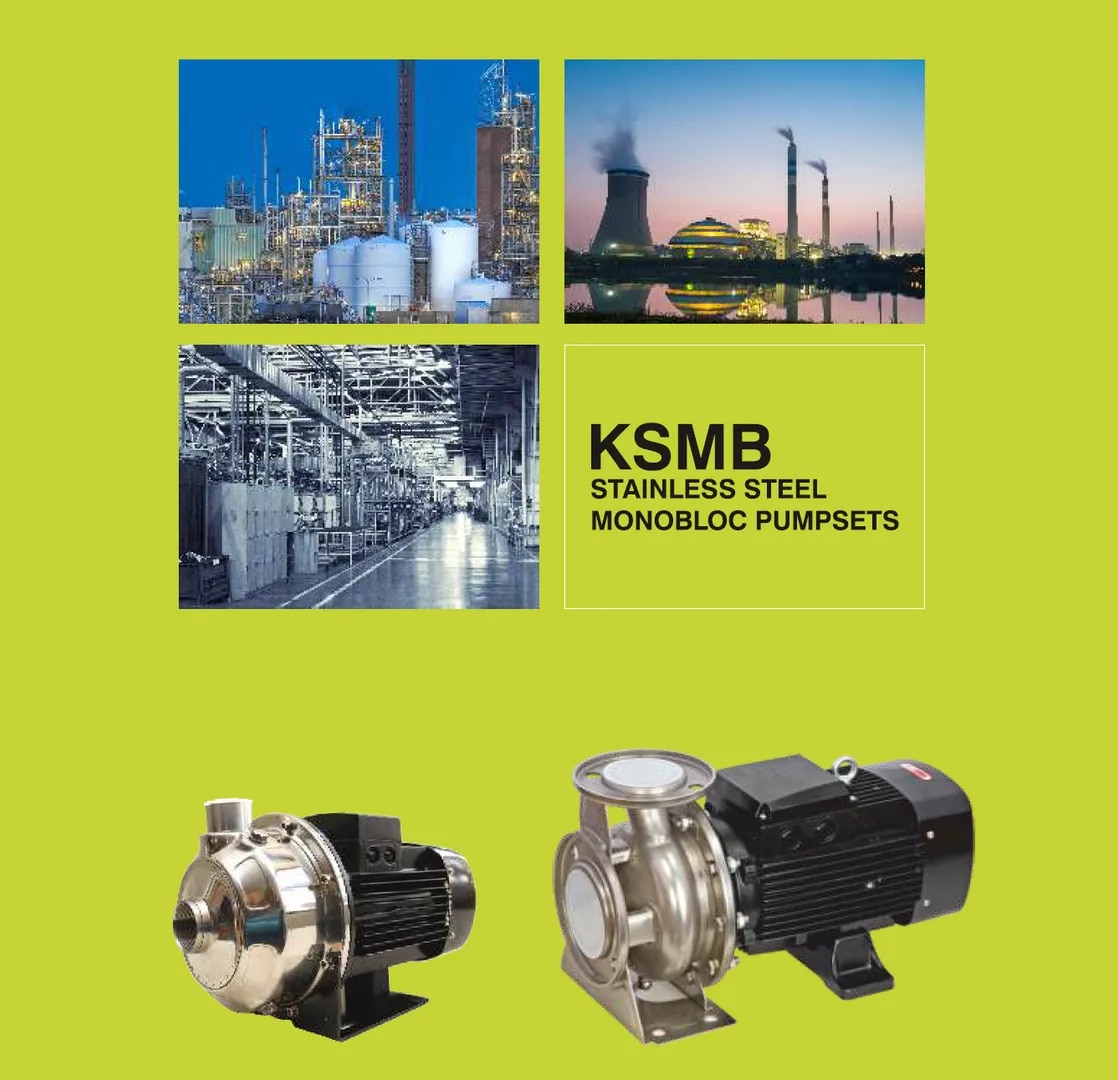

SS Monobloc pumpset by Kirloskar

Applications

1. KBL’s KSMB is a monobloc pump set that sports a stainless steel body, which makes it suitable for handling a wide range of industrial fluids. As a result, it is extensively used for handling various types of critical fluids in pharmaceutical, food processing and chemical industries, demineralising plants, etc. The super hydraulic and advanced manufacturing process of the KSMB pump makes it highly energy-efficient.

Pharmaceutical Industries

Food Processing

Demineralising Plants

Air Conditioning and Refrigeration System

Diary And Beverages

SPECIFICATIONS

Head Range: Up to 50 metres

Discharge Range: Up to 17.8 LPS

Power Ratings: 0.75 to 7.5 kW (1 to 10 HP)

Voltage Range: 350 to 440 volts (three phase)

Insulation: F class

Protection: IP 44 / IP 55

pH Value: 5 to 9

Liquid Temperature Range: (-) 10° C to 85° C (up to 3 HP) & (-) 20° C to 100° C (5 HP and above)

MATERIAL OF CONSTRUCTION

Impeller: Stainless Steel

Delivery Casing: Stainless Steel

Motor Body: Cast Iron

Shaft: Stainless Steel

Mechanical Seal: Carbon vs Ceramic (up to 3 HP)

Carbon vs Silicon Carbide (5 HP and above)

Guarding Plate: Stainless Steel

Rubber Parts: NBR

FEATURES

Stainless Steel – Wetted Components

Mechanical Seal

High Efficiency And Energy Saving Design

Superior Hydraulics

Dynamically Balanced Rotating Parts

Lightweight And Compact Design

Easy Maintainable Designs

Designed to Prevent Overloading
