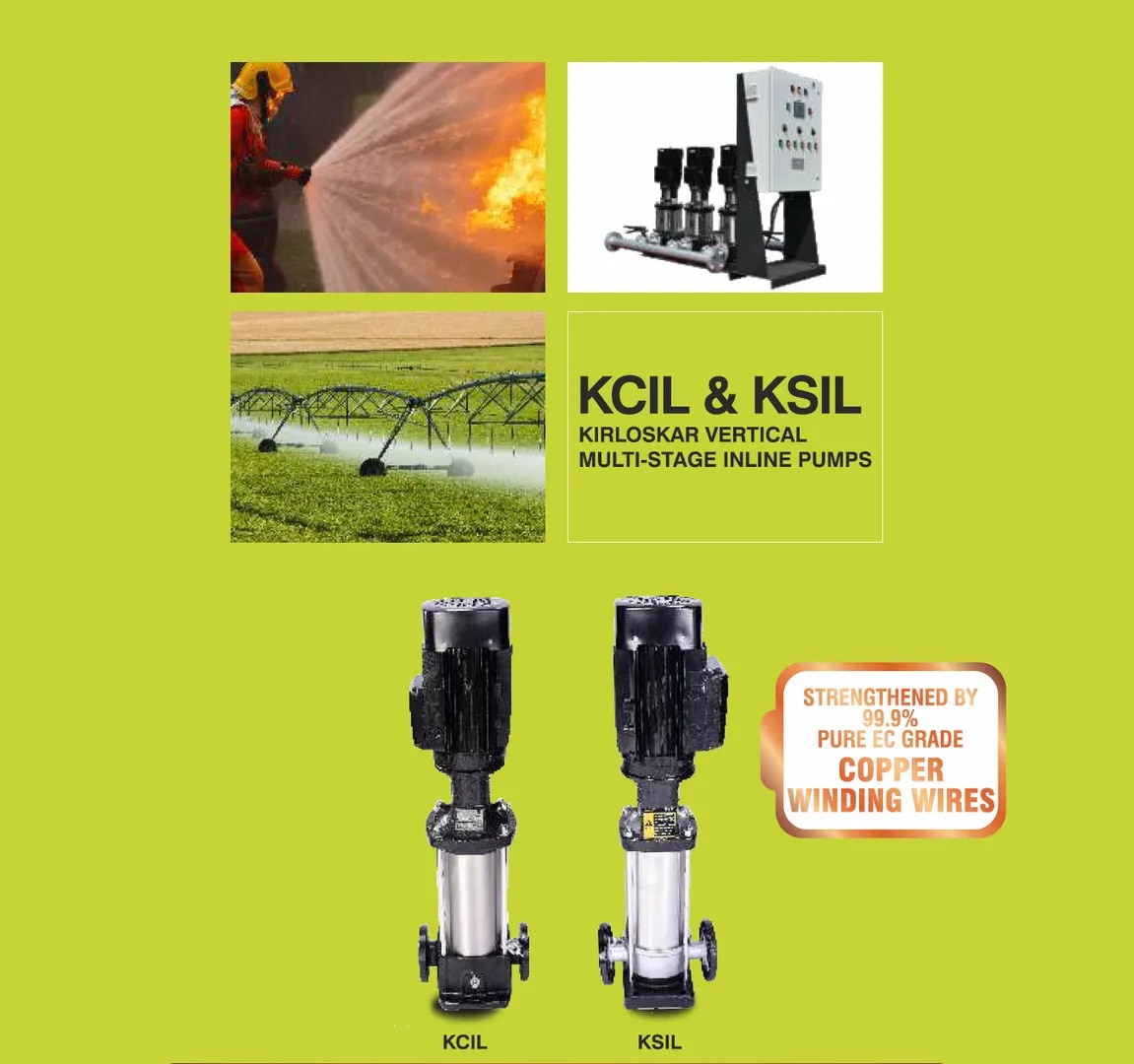

Vertical Inline Pumps by Kirloskar

APPLICATIONS

1. KBL’s KCIL/KSIL is a multi-stage vertical inline pump designed to deliver large volumes of water for high head applications, helping customers achieve high turnaround time and productivity. Thus, these lightweight and durable pumps are ideal for a wide range of industrial applications such as in water treatment plants and small capacity power plants as well as in various other industries such as building, dairy and food processing, etc. The high discharge capacity and head range of these pumps also make these useful for agricultural applications such as field irrigation (flooding), sprinkler irrigation and drip-feed irrigation, as well as for domestic applications for facilitating supply of clean water.

Building Industry - Booster, Firefighting, Hydro Pneumatic Systems, and Heating, Ventilation & Air Conditioning System (HVAC)

Water Treatment - Reverse Osmosis Systems, Softening, Ion Exchange, Demineralising Systems and Distillation Systems

Irrigation - Field Irrigation (Flooding), Sprinkler Irrigation and Drip-Feed Irrigation

Dairy, Food Processing and Beverage Industries - Supply of Clean Water

Small Capacity Power Plants- Boiler Feed and Condensate Transfer

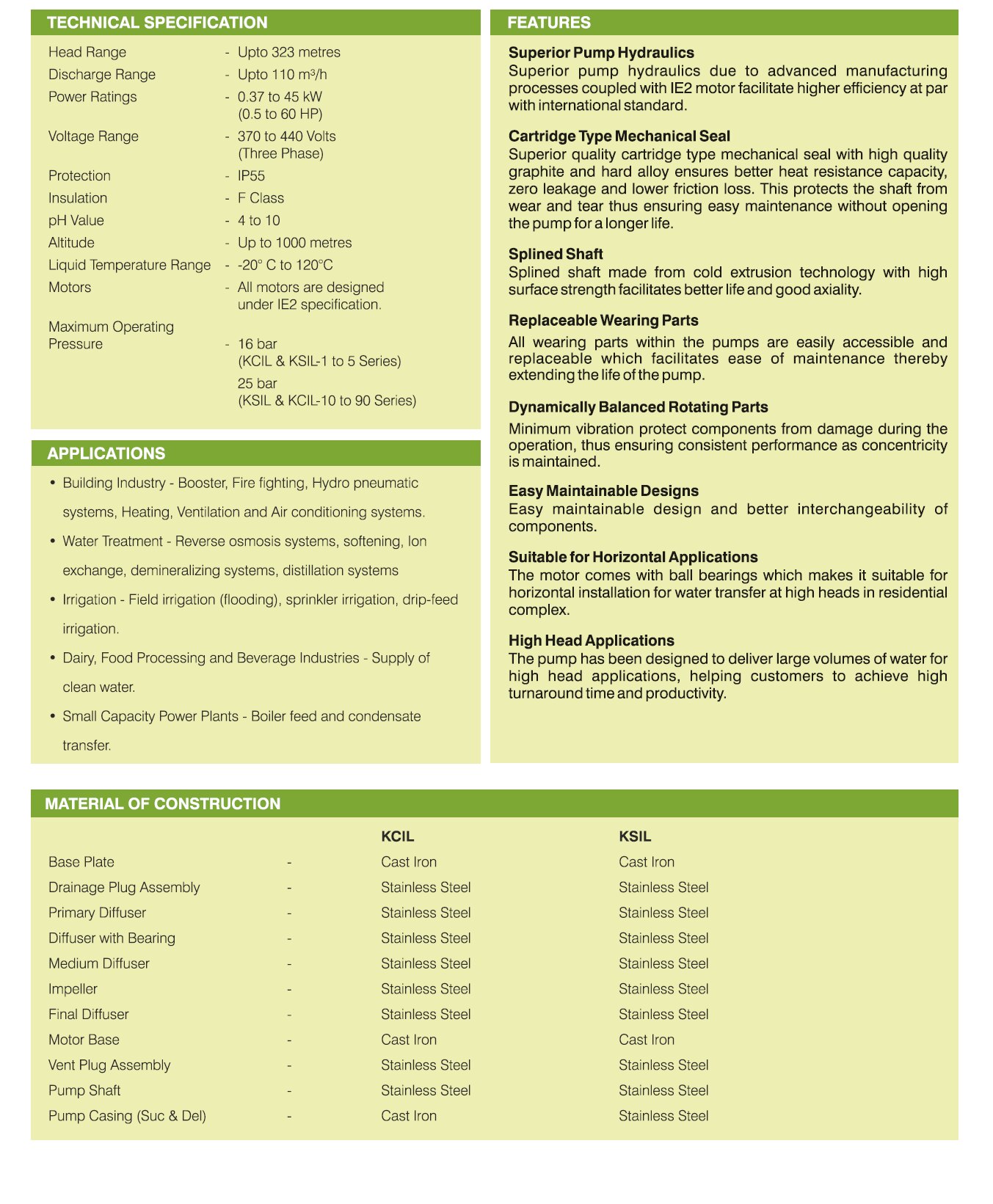

SPECIFICATIONS

Head Range: Up to 323 metres

Discharge Range: Up to 110 m3/hr

Power Ratings: 0.37 to 45 Kw (0.5 to 60 HP)

Voltage Range: 370 to 440 volts (three phase)

Protection: IP 55

Insulation: F class

PH Range: 4 to 10

Altitude: Up to 1000 metres

Liquid Temperature Range: -20° C to 120°C

Motors: All motors are designed under IE2 specification.

Maximum Operating Pressure: 16 bar (KCIL & KSIL- 1 to 5 Series) & 25 bar (KSIL & KCIL- 10 to 90 Series)

MATERIAL OF CONSTRUCTION

KCIL

Base plate: Cast Iron

Drainage plug assembly: Stainless Steel

Primary diffuser: Stainless Steel

Diffuser with bearing: Stainless Steel

Medium diffuser: Stainless Steel

Impeller: Stainless Steel

Final diffuser: Stainless Steel

Motor base: Cast Iron

Vent plug assembly: Stainless Steel

Pump Shaft: Stainless Steel

Pump Casing (Suc & Del): Cast Iron S

KSIL

Base plate: Cast Iron

Drainage plug assembly: Stainless Steel

Primary diffuser: Stainless Steel

Diffuser with bearing: Stainless Steel

Medium diffuser: Stainless Steel

Impeller: Stainless Steel

Final diffuser: Stainless Steel

Motor base: Cast Iron

Vent plug assembly: Stainless Steel

Pump Shaft: Stainless Steel

Pump Casing (Suc & Del): Stainless Steel

FEATURES

Superior Pump Hydraulics

Cartridge Type Mechanical Seal

Splined Shaft

Replaceable Wearing Parts

Dynamically Balanced Rotating Parts

Easy Maintainable Design

Suitable for Horizontal Applications

High Head Applications
