APPLICATIONS KBL’s exclusive range of KV/DV vacuum pumps are majorly used for priming of large pumps. As the name suggests, these are also used to create a ‘vacuum’ by enabling evacuation of air and thus are widely used for applications like drying, evaporation, degasification, condensation, etc. Priming of Large Pumps Evacuation of Air from Suction Pipes and Chambers Twist Drilling Machine, Removing Water from Pulp Layer, Labelling, Bottle Filling, De-odorising, etc. Drying, Evaporation, Distillation, Filtration, Sterilisation, Condensation, Degasification, Sucking Gases, etc. Extrusion Machines SPECIFICATIONS Vacuum: Up to 600 mm of mercury Air Flow Rate: Up to 55 m/hr (at mean sea level) Power Ratings: 0.75 to 2.2 kW (1 to 3 HP) Voltage Range: 180 to 240 volts (single phase) 300 to 440 volts (three phase) Insulation: B class Protection: IP 44 MATERIAL OF CONSTRUCTION Rotor (Impeller) : Stainless Steel Delivery Casing : Cast Iron Motor Body : Cast Iron Pump Shaft : Carbon Steel FEATURES Wide Voltage Design Designed to Prevent Overloading Replaceable Wearing Parts Dynamically Balanced Rotating Parts

APPLICATIONS Domestic Water Supply Water Supply to Overhead Tanks Car Washing Lawn Sprinklers Garden/Fountains SPECIFICATIONS Head Range: Up to 38 metres Discharge Range: Up to 5115 LPH Power Ratings: 0.37 to 1.1 kW (0.5 to 1.5 HP) Voltage Range: 260 to 240 volts (single phase) FEATURES High Head Applications High Quality Aluminium Motor Body High Suction Lift Wide Voltage Design TOP - Thermal Overload Protector Handle to Enhance Grip and Portability Easy Maintainable Design Shielded Ball Bearing

APPLICATIONS High rise building Bungalows & Hotels Agriculture & gardening Domestic water supply SPECIFICATIONS Power Rating - 4.5 to 18.5 kW (6.0 to 25.0 HP) Voltage Range - 200 to 440 Volts (Three Phase) Head Range - From 6 Meters to 81 Meters Discharge Range - From 1850 LPM to 600 LPM Type of Cooling - Oil Cooled Insulation - F Class Protection - IP 68TECHNICAL MATERIAL OF CONSTRUCTION Motor Housing - Stainless Steel Motor Shaft - Stainless Steel Motor Bearing - Ball Bearing Finish Rotor - Copper Motor Base & Adaptor - Cast Iron Pump Shaft - Stainless Steel Pump Stage Casing - Cast Iron Impeller - Stainless Steel Outlet (NRV) - Cast Iron Suction Housing - Cast Iron FEATURES Innovative enhancements in efficiency and lower power usage Ideal and appropriate for horizontal performance Impressive and well-suited for low voltage operations Incredible design for persistent operation Indigenous crafting to minimize motor burnout risks Inexpensive with prolonged durability

APPLICATIONS Domestic and Community Water Supply Rural Water Supply Gardening and Small Farm Irrigation Construction Site Water Supplies for High Rise Building SPECIFICATIONS Head Range : Up to 276 metres Discharge Range : Up to 1540 LPM Power Ratings : 2.2 to 18.5 kW (3 to 25 HP) Voltage Range : 160 to 240 volts (single phase) 200 to 440 volts (three phase) Insulation : B class Type of Cooling : Water-filled Protection : IP 68 MATERIAL OF CONSTRUCTION Impeller : Stainless Steel / Noryl Diffuser : Cast Iron / Noryl Bowl/Stage casing : Cast Iron Pump Shaft : Stainless Steel Motor Housing : Stainless Steel Motor Shaft : Stainless Steel Finished Rotor : Copper NRV : Cast Iron Suction : Cast Iron Pump /Motor Bushes : NBR / LTB Thrust Bearing : Carbon + SS FEATURES Wide Voltage Design High efficiency and Energy Saving Design Dynamically Balanced Rotating Parts Longer and Trouble Free Life Advanced Water-cooled Motor Design Wide Voltage Motor Design with 100% Copper Rotor CED – Cathode Electro Deposition Coating

APPLICATIONS Horticulture & Agriculture Sprinkler and Drip Irrigation Water Supplies for High Rise Buildings Rural Water Supply Domestic and Community Water Supply SPECIFICATIONS Head: Up to 147 metres Capacity: Up to 840 LPM / 50 m3/hr Power Ratings: 2.2 to 15 kW / 3 to 20 HP Voltage Range: 200 to 440 volts (three phase) Insulation: B class Protection: IP 68 MATERIAL OF CONSTRUCTION JVS Impeller: Stainless Steel Outlet (NRV Body): Cast Iron Motor Body: Mild Steel Pump Shaft: Stainless Steel JVSN Impeller: Cast Iron Outlet (NRV Body): Cast Iron Motor Body: Cast Iron Pump Shaft: Stainless Steel FEATURES Wide Voltage Design Design to Prevent Overloading High Efficiency and Energy Saving Design Dynamically Balanced Rotating Parts Advanced Water-cooled Motor Design Wide Voltage Motor Design with 100% Copper Rotor Easy Maintainable Design High-head Applications

Applications Gardening and Small Farm Irrigation Lawn Sprinklers Water Supplies for High Rise Building Domestic and Community Water Supply Water Transfer and Circulation SPECIFICATIONS Head Range: Up to 52 metres Discharge Range: Up to 28 LPS Power Ratings: 0.37 to 3.7 kW (0.5 to 5.0 HP) Voltage Range: 180 to 240 volts (single phase) & 120 to 220 volts (low voltage) & 230 to 400 volts (“P” series) Insulation: B / F class Protection: IP 44 / IP 55 MATERIAL OF CONSTRUCTION Impeller: Cast Iron/Noryl Delivery Casing: Cast Iron Motor Body: Cast Iron Pump Shaft: Carbon Steel Sealing: Mechanical Seal FEATURES Wide Voltage Design Replaceable Wearing Parts TOP - Thermal Overload Protector CED – Cathode Electro Deposition Coating Automatic Air Release High Efficiency and Energy Saving Design Designed to Prevent Overloading Dynamically Balanced Rotating Parts

APPLICATIONS Sewage Pumping Dewatering from Basements, Multi-storeys, Shopping Malls, Godowns, etc. Construction Site Dewatering Foundation, Trenches and Pits Flood Water Handling SPECIFICATIONS Head Range: Up to 70 metres Discharge Range: Up to 4800 LPM Power Ratings: 0.75 to 15 kW (1 to 20 HP) Voltage Range: 380 to 440 volts (three phase) Insulation: B / E class Protection: IP 68 pH Value: 6.5 to 7.5 Maximum Ambient: 40° C temperature Maximum Density: ≤ to 1050 kg/m3 Consistency of Medium: < 1.2 x 103 kg/m3 MATERIAL OF CONSTRUCTION Impeller: Cast Iron Delivery Casing: Cast Iron Motor Body: Cast Iron Pump Shaft: Carbon Steel FEATURES High Efficiency and Energy Saving Design Easy Maintainable Design CED – Cathode Electro Deposition Coating Robust Construction Replaceable Wearing Parts Dynamically Balanced Rotating Parts

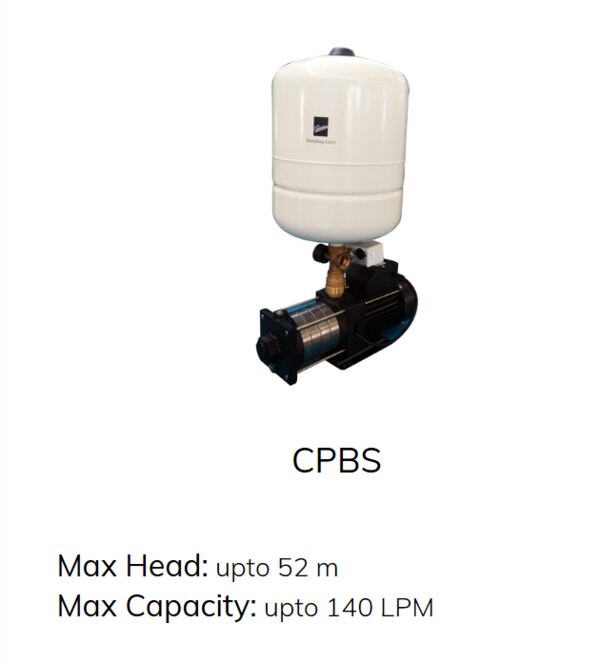

APPLICATIONS Consistent Pressure at Multi-outlets Multi Jet Shower Panels Washing Machine, Hot Water Geyser and Gas Geyser Pressurised Washing of Vehicles Kitchenware Washing SPECIFICATIONS Head Range: Up to 52 metres Discharge Range: Up to 140 LPM Power Rating: 0.4 to 1.1 kW (0.6 to 1.5 HP) Pressure Range: Up to 4.4 kg/cm Voltage Range: 180 to 240 volts (single phase) Insulation: B class Protection: IP 44 Tank Size: 24 liters MATERIAL OF CONSTRUCTION Impeller: Stainless Steel Diffuser: Stainless Steel Motor Body: Aluminum Die Cast Pump Shaft: Steel Pump Stage Casing: Stainless Steel Suction & Delivery Casing: Cast Iron FEATURES Compact, Reliable and Silent TOP - Thermal Overload Protector Diaphragm Type Pressure Tank Reliable and Durable Components Easy Maintainable Designs

APPLICATIONS Water supply to overhead tanks in bungalows Domestic water supply Feed water to RO plants Construction sites Lawn sprinklers Garden and fountains Car washing
